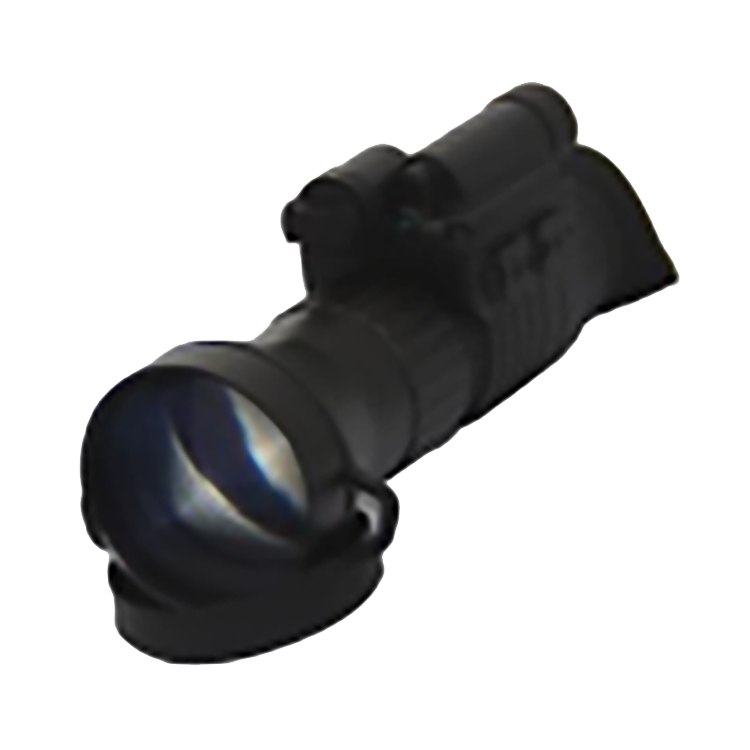

KWY281D-21/31 (Gen2+ &3) Night vision monocular
product description:
Product description:
KWY281D-21/31 is based on the latest ophotoelectric technology research and development of new products,，The instrument adopts the high-performance generation ii/three image intensifier, with excellent performance, small volume and weight ,light, clear imaging, simple operation, high cost performance, and by replacing the objective lens (or connecting multiplier lens). It can change magnification and so on. The product can be connected with digital cameras, cameras and video cameras. cooperate with the gun aiming fixture can hang gun use, also can be used alone. The night vision instrument is equipped with an infrared auxiliary light source and an automatic anti glare protection system.
Technical Parameters:
MODEL | KWY281D-21(23/24/25) | KWY281D-31(33/34/35) |
IIT | Gen2+ | Gen3 |
Magnification | 1X(3X/4X/5X) | 1X(3X/4X/5X) |
Resolution ( LP/mm) | 45-57 | 51-63 |
Photo cathode type | S25 | GaAs |
S/N （dB） | 15-21 | 18-25 |
Luminous sensitivity（uA/lm） | 450-500 | 500-700 |
MTTF（hrs） | 10,000 | 10,000 |
FOV（degree） | 42+/-3 | 42+/-3 |
Detection distance（M） | 180-220 | 250-300 |
Graduation cursor | Internal（optional） | Internal（optional） |
Diopter range | +5/-5 | +5/-5 |
Lens system | F1.2, 25mm | F1.2, 25mm |
Coating | Multilayer broadband coating | Multilayer broadband coating |
Range of focus（M） | 0.25--∞ | 0.25--∞ |
Auto anti strong light | High sensitivity broadband detection | High sensitivity broadband detection |
Rollover detection | Solid non-contact automatic detection | Solid non-contact automatic detection |
Dimensions（mm） | 115x69x54(No eyeshade) | (No eyeshade) |
Material | Aviation aluminum | Aviation aluminum |
Weight（no battery） | 290g | 290g |
Power supply | 2.6-4.2V | 2.6-4.2V |
Battery type | CR123(A)x1 | CR123(A)x1 |
Battery life（H） | 80(IR OFF) 40(IR ON) | 80(IR OFF) 40(IR ON) |
Operating Temperature （℃） | -40/+50 | -40/+50 |
Relative Humidity | 5%-98% | 5%-98% |
Environment rating | IP65（IP67 optional） | IP65（IP67 optional） |
