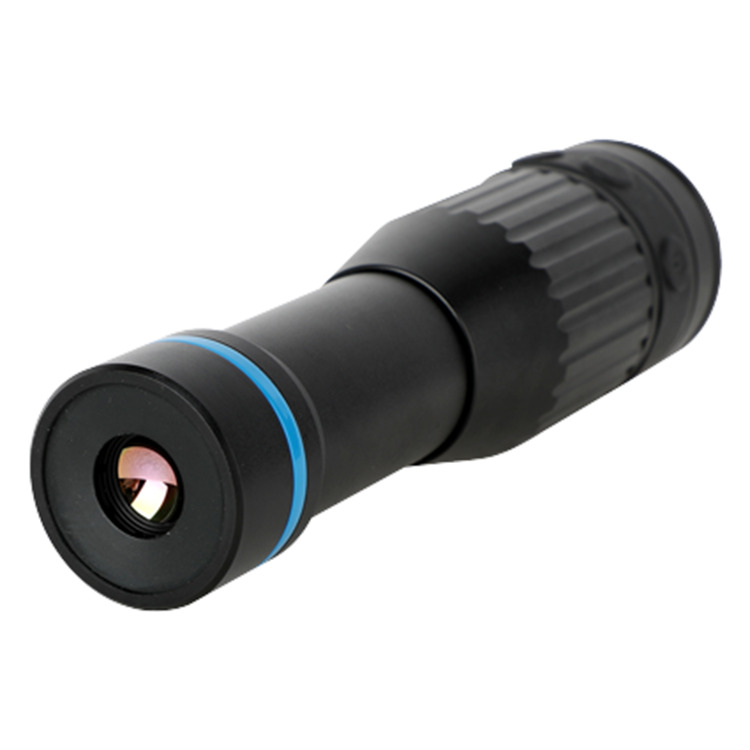

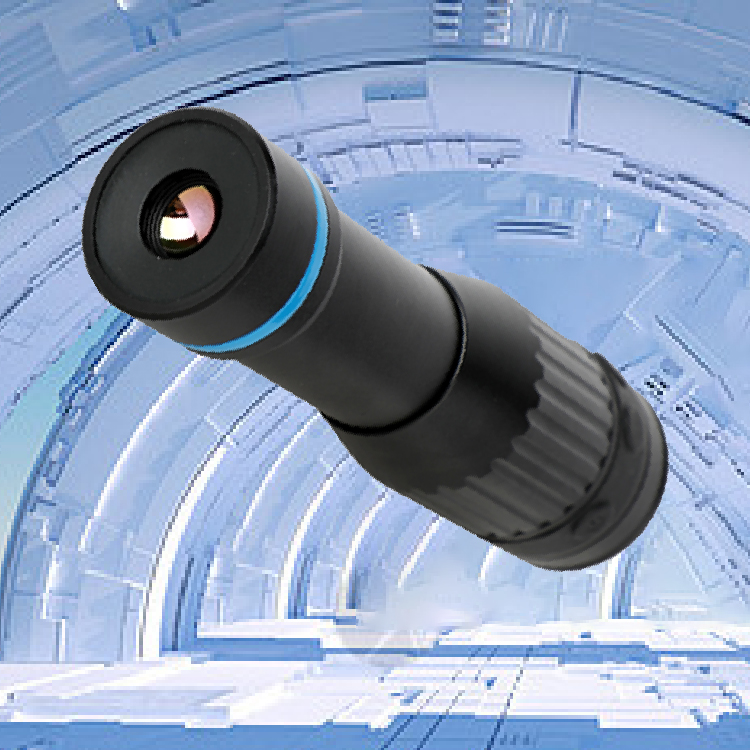

KRY289D-210 Uncooled Thermal Monocular
product description:
Key feature
Small size, one hand operation
Shutter less technology
Standard CR123AA battery for continuous 10 working hours.
Multiple color palette
Built-in moveable crosshair in display
4x Digital zoom
Technical Parameters:
1. Tech specs
Item | KRY289D-210 | |
Detector | Type | Uncooled FPA |
Resolution | 240×180 | |
Image | FOV | 23.4°×17.5° |
Focal Length | 10mm | |
NETD | 60mk@30℃ | |
Focus | Athermalized focus free | |
Digital zoom | 1x、2x、3x、4x | |
Spectral range | 8-14μm | |
Crosshair | Yes | |
Palette | Black hot / white hot / iron hot / red hot / amber etc.. | |
Start time | ≤5s | |
Display | Screen | 1.3 inch square (240*240) LCD screen |
Power supply | Type | CR123 AA Battery |
Working time | 10 hours continuous | |
Sleeping mode | 5 minutes no key operation, automatic sleep, any key wake up | |
Environmental parameters | Working Temp | -10℃- +50℃ |
Storage Temp | -30℃- +60℃ | |
IP ratings | IP66 | |
Physical parameters | Weight | ≈400 g |
Dimension | ≈Φ45×167mm | |
Detection distance | Human （1.8*0.5m） | 280m |
Vehicle（2.3*2.3m） | 450m | |
Recognition distance | Human（1.8*0.5m） | 140m |
Vehicle（2.3*2.3m） | 225m | |
