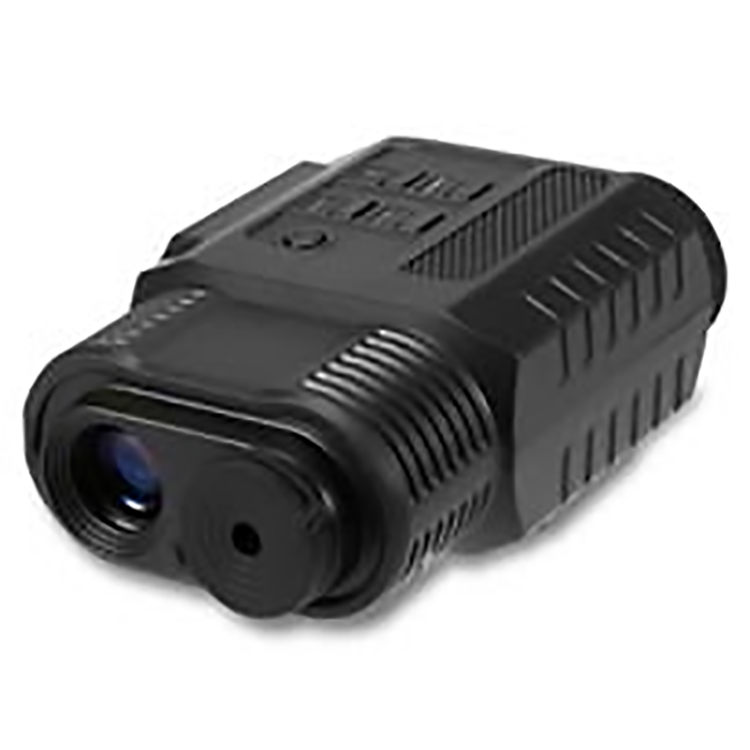

KHSY150S-3.5x20 Infrared digital night vision device parameters
KHSY150S-3.5x20
product description:
Monitor wild animals in nature reserves, forestry, wildlife conservation, scientific research institutes, forest farms, wetlands, forest parks, etc., and combat poaching
Field observation and rescue, mountain forest cave tourism and adventure enthusiasts outdoor tourism climbing high and long distance camping photo monitoring
News reporters remotely observe and take photos, investigative companies/private investigators forensic records
Long-distance night observation and photography of forestry management, geological exploration, oil production unit, airport management, large gathering management unit/railway and port
Environmental protection, safety production supervision or long-distance photo monitoring for hunting and animal observation enthusiasts
Technical Parameters:
| Catalog | Function Description |
| Optiacal performance | Magnification power 3.5~9X20 |
| Digital Zoom magnification, Max 2.6x | |
| Angle Of View 10° | |
| Objective Aperture 20mm | |
| Exit Pupil Distance 18mm | |
| F# for Objective lens 1.3 | |
| 3m~∞ in daytime (color); Viewing in the darkness up to 200M (monochrome) | |
| Diopter adujustment +100°~ -400° | |
| Video Output | 320x240 resolution TFT LCD |
| OSD menu display | |
| CVBS always output with VGA resolution | |
| Imager | CMOS High-sensitivity Sensor |
| Size 1/4'' | |
| Resolution 640X480 | |
| IR LED | 3W Infared LED with 850nm |
| Micro SD Card | Support SDHC 4GB~32GB SD Card |
| Hardware Buttons | Power on/off |
| Snap | |
| Mode selection | |
| Zoom | |
| IR switch | |
| Operation | Preview |
| Record AVI file in SD storage | |
| Capture JPEG file in SD storage | |
| Playback media file from SD storage | |
| Power | External power supply - DC 5V/1A |
| 4 pcs AA battery 4.5V-6V | |
| Battery life: 6 hours working time with IR off | |
| Low battery warning | |
| System | 4 modes (Capture, Video, Playback,Menu) |
| Single frame Image Capture | |
| Video image Record | |
| Playback image | |
| Delete image | |
| 5 levels IR switch for USB power,3 levels IR switch for battery. | |
| Auto Power Off (Off/1 min/ 3min/5 min) | |
| Language: English /French/ Spanish/Portuguese/Deutsch/9 LANGUAGES | |
| TV mode(PAL/NTSC) | |
| Light Freq. 50/60HZ | |
| Format | |
| LCD Brightness 4 Levels | |
| Version | |
| Size | size 144mmx85mmx46mm |
| TBD | |
| package | USB cable/ AV cable/ Micro SD card/ Bag/Manual |
