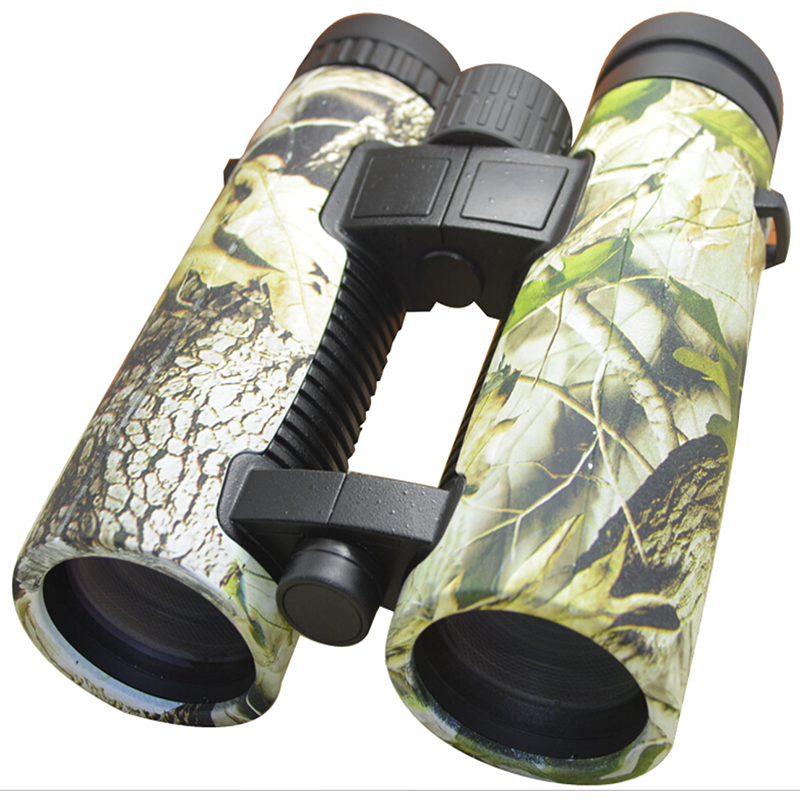

KW71H-0842/1042 Straight tube waterproof telescope

KW71H-0842/1042

Order inquiry
Product Image Product name Product number Order quantity
KW71H-0842/1042 Straight tube waterproof telescope   KW71H-0842/1042
* Name
*cellphone
E-mail
Company
Remarks

product description:

A good telescope of a high-quality brand uses strictly inspected optical glass and high-level optical processing. It is an excellent choice to enjoy the outdoors. And some small manufacturers use some substandard optical glass, or even ordinary glass or resin lenses to assemble, the products have not been strictly debugged, they are fake and inferior products, attracting customers with low prices, so that customers be violated.


Technical Parameters:

MODELS SPEC.                   8x42/10x42



01    POWER  8x    10x

02    OBJ.LENS DIA. mm       φ42mm

03    TYPE OF PRISM     Type / Material      类别及材料    BK7

04    PRISM COATING   Yes / No 是或否    yes

05    NUMBER OF LENS        Pieces & Groups   6pieces4groups

06    LENS COATING     CL/FC/BMC/FBMC        BMC

07    FOCUS SYSTEM     Cent. / Ind. / Fix    Cent.

08    FOCUSING LENS   Eye. / Obj. / Int.     Int.

09    EXIT PUPIL DIAMETER  mm        4.9   4.0

10    EXIT PUPIL DIST.    mm        18.5 15

11    FIELD OF VIEW      ANGLE   7°    5.6°

12                  Ft/1,000Yds           369ft       294ft

13                  M/1,000M             123m      98m

14    MIN. FOCAL LENGTH   M / Ft.    米 / 尺  2m/6ft    2m/6ft

15    RELATIVE BRIGHTNESS        24    16

16    TWILIGHT INDEX          18.3 20.5

17    RESOLUTION        ≤5.5″

18    DIOPTER SYSTEM         Right Eyepiece

19    DIOPTER COMP.           + - Optic.Degree        ±3

20    INTERPUPILLARY DIST. mm        56mm~74mm

21    ZOOM SYSTEM     Type & Location

22    WEATHER PROOF        Yes / No        yes

23    WATER PROOF     Depth / Time        1.5m/3 min

24    NITROGEN FILLED        Yes / No        yes

25    EYECUPS SYSTEM        Rubber/Pop-up/Twist-up           Twist-up

26    POUCH  Yes / No - Mat'l.           yes

27    STRAP    Yes / No - Mat'l.           yes

28    CLEANING CLOTH Yes / No        yes

29    SILICA GEL     Yes / No        yes

30    UNIT DIAMENSION  mm          155x135x55mm

31    UNIT WEIGHT  gm / oz.            650g

32    GIFT BOX SIZE      mm

33    PIECES PER INNER CARTON      Pieces / Size

       INNER CARTON SIZE

34    PIECES PER SHIPPING CARTON        Pieces            10pcs

35    SHIPPING CARTON SIZE     Size cm

36    GROSS WEIGHT   Kg. / Pound

37    NET WEIGHT        Kg. / Pound
