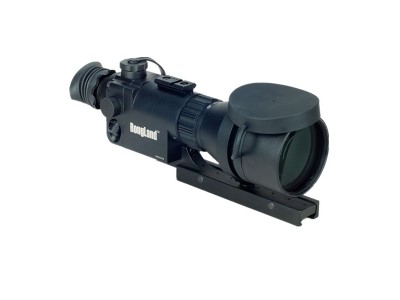

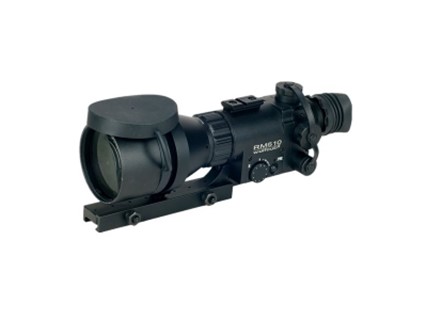

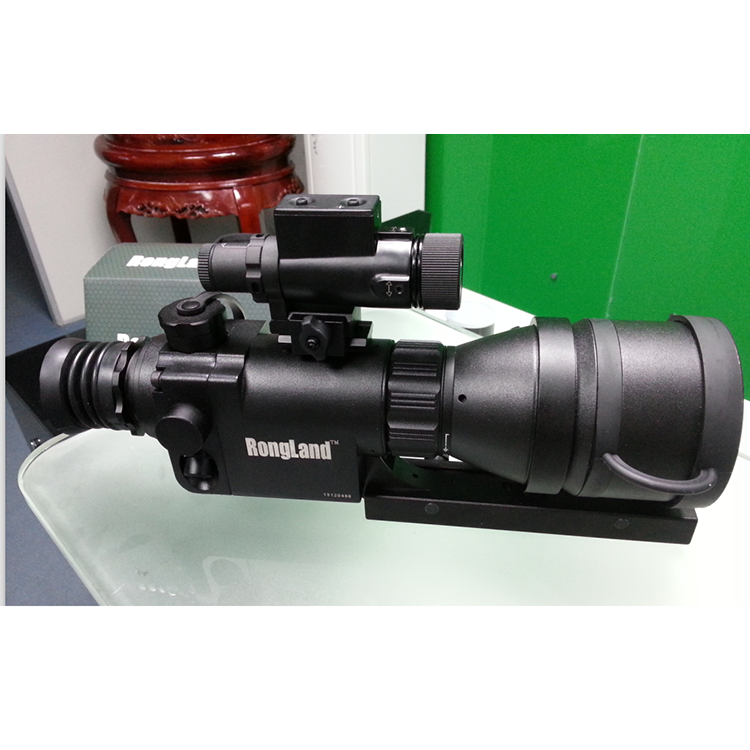

KWM510R-5x50 Generation1+ Night vision
product description:
Features:
· Powerful multi-coated all-glass optics
· High resolution Gen 1+ Image Intensifier tube
· Easy-to-see “Red on green” reticle system
· Reticle brightness adjustment
· Detachable Long Range infrared illuminator
· Water and fog resistant
· Limited one-Year Warranty
Technical Parameters:
Specification:
Full Darkness IR System | Yes |
IIT Generation | 1+ |
Resolution | 36-40 lp/mm |
Magnification | 5x |
Lens System | F:1.5, F108 mm |
Proshield Lens Coating | Yes |
FOV | 10° |
Exit Pupil | 14.4mm |
Eye Relief | 45mm |
Range of Focus | 5 m to infinity |
Diopter Adjustment
Detective range
Recognition range | -5 to +5
400 m
260 m |
Infrared Illuminator | Detachable IR450 |
IR Indicator | Yes |
Power Supply | 1 x 3 V CR123A type battery |
Battery Life | 20-40 hrs |
Reticle System | Red on Green |
Windage & Elewation Adjustment | 1/4 MOA |
Environmental Rating | Water and fog resistant |
Operating Temperature | -51 to +45 °C |
Storage Temperature | -55 to +70 °C |
Dimensions | 273x108x87 mm |
Weight | 1.6 kg |
Warranty | 1 years |
