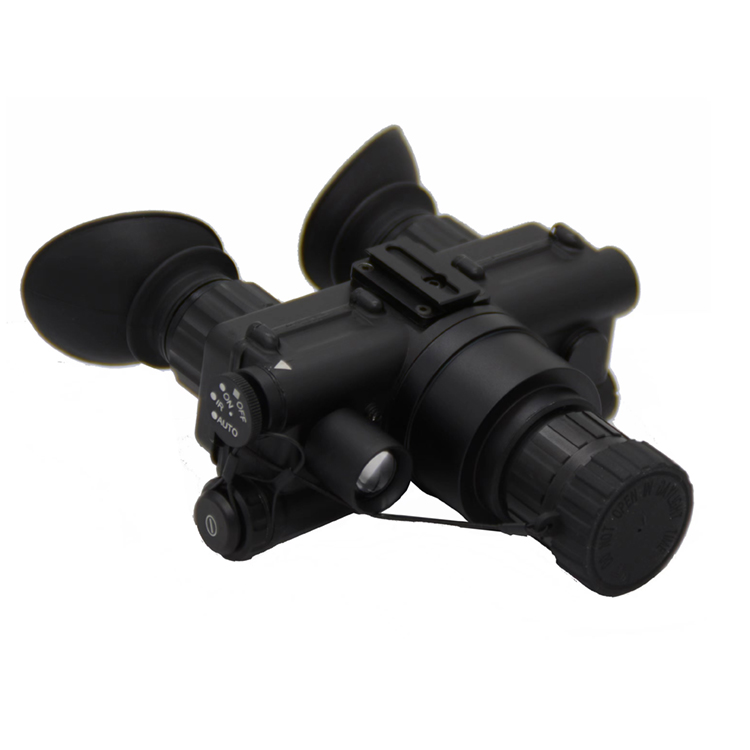

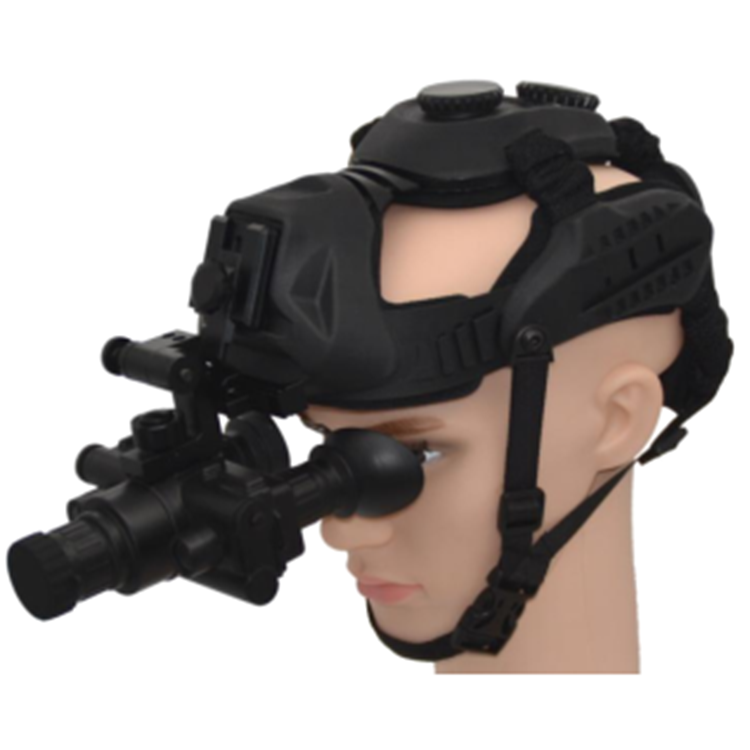

KWY279D-21/31 Series binocular monocular low-light night vision device
product description:
Product description:
The KWY279D-21/31 It uses a high-performance second-generation/third-generation image intensifier, with excellent performance, small size, light weight, and metal housing. The distance between the eyes is adjustable, the imaging is clear, the operation is simple, and it is cost-effective. The magnification can be changed by changing the objective lens (or connecting the extender). The night vision device has a built-in infrared auxiliary light source and an automatic anti-glare protection system.
Technical Parameters:
Technical specifications：
MODEL | KWY279D-21 | KWY279D-31 |
IIT | Gen2+ | Gen3 |
Magnification | 1X | 1X |
Resolution | 45-57 | 51-57 |
Photocathode type | S25 | GaAs |
S/N(db) | 15-21 | 18-25 |
Luminous sensitivity(μa-lm) | 450-500 | 500-600 |
MTTF（hrs） | 10,000 | 10,000 |
FOV(deg) | 42+/-3 | 42+/-3 |
Detection distance(m) | 180-220 | 250-300 |
Adjustable range of eye distance | 65+/-5 | 65+/-5 |
Diopter(deg) | +5/-5 | +5/-5 |
Lens system | F1.2, 25mm | F1.2, 25mm |
Coating | Multilayer broadband coating | Multilayer broadband coating |
Range of focus | 0.25--∞ | 0.25--∞ |
Auto anti strong light | High Sensitivity, Ultra Fast, Broadband Detection | High Sensitivity, Ultra Fast, Broadband Detection |
rollover detection | Solid non-contact automatic detection | Solid non-contact automatic detection |
Dimensions (mm) (without eye mask) | 130x130x69 | 130x130x69 |
material | Aviation aluminum | Aviation aluminum |
Weight (g) | 393 | 393 |
Power supply (volt) | 2.6-4.2V | 2.6-4.2V |
Battery type (V) | AA(2) | AA(2) |
Wavelength of infrared auxiliary light source (nm) | 850 | 850 |
Wavelength of red-explode lamp source (nm) | 808 | 808 |
Video capture power supply (optional) | External power supply 5V 1W | External power supply 5V 1W |
Video resolution (optional) | Video 1Vp-p SVGA | Video 1Vp-p SVGA |
Battery life (hours) | 80(W/O IR) 40(W/IR) | 80(W/O IR) 40(W/IR) |
Operating Temperature (C | -40/+50 | -40/+50 |
Relative humidity | 5%-98% | 5%-98% |
Environment rating | IP65（IP67 Optional） | IP65（IP67 Optional） |
