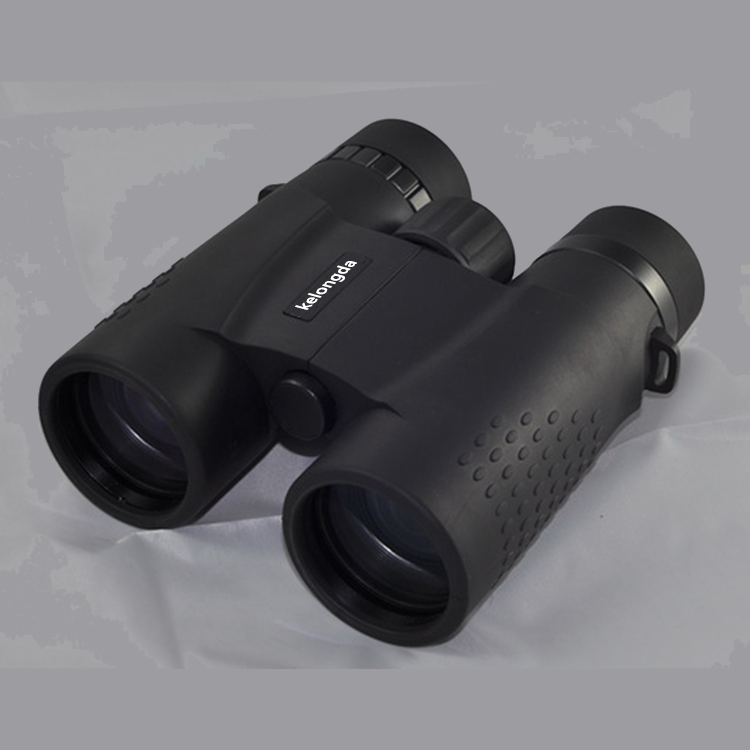

KW51HMF-8x42&10x42 Magnesium Aluminum Alloy Straight Tube Waterproof Telescope

KW51HMF-8x42&10x42

Order inquiry
Product Image Product name Product number Order quantity
KW51HMF-8x42&10x42 Magnesium Aluminum Alloy Straight Tube Waterproof Telescope   KW51HMF-8x42&10x42
* Name
*cellphone
E-mail
Company
Remarks

product description:

A good telescope of a high-quality brand uses strictly inspected optical glass and high-level optical processing. It is an excellent choice to enjoy the outdoors. And some small manufacturers use some substandard optical glass, or even ordinary glass or resin lenses to assemble, the products have not been strictly debugged, they are fake and inferior products, attracting customers with low prices, so that customers be violated.


Technical Parameters:

MODELS SPEC.                   8x42/10x42



01    POWER  8x    10x

02    OBJ.LENS DIA.mm        φ42mm

03    TYPE OF PRISM     Type / Material      BaK4

04    PRISM COATING   Yes / No        Phase

05    NUMBER OF LENS        Pieces & Groups          8pieces6groups

06    LENS COATING     CL/FC/BMC/FBMC        FMC/Object lens&eyepiece is FBMC

07    FOCUS SYSTEM            Cent. / Ind. / Fix           Cent.

08    FOCUSING LENS          Eye. / Obj. / Int.            Int.

09    EXIT PUPIL DIAMETER  mm        φ5.2 φ4.27

10    EXIT PUPIL DIST.    mm        17.2 15.2

11    FIELD OF VIEW      ANGLE          8.12°       6.5°

12                  Ft/1,000Yds           426ft       340ft

13                  M/1,000M             142m      113m

14    MIN. FOCAL LENGTH          M / Ft.    米 / 尺  2m  2.5m

15    RELATIVE BRIGHTNESS               27.04      18.23

16    TWILIGHT INDEX                        18.3 20.4

17    RESOLUTION               4"

18    DIOPTER SYSTEM         Right Eyepiece

19    DIOPTER COMP.           + - Optic.Degree        ±3

20    INTERPUPILLARY DIST. mm        56mm~74mm

21    ZOOM SYSTEM     Type & Location

22    WEATHER PROOF        Yes / No        yes

23    WATER PROOF     Depth / Time        1.5m/3 min

24    NITROGEN FILLED        Yes / No 有或无    yes

25    EYECUPS SYSTEM        Rubber/Pop-up/Twist-up           Twist-up

26    POUCH         Yes / No - Mat'l.           yes

27    STRAP           Yes / No - Mat'l.           yes

28    CLEANING CLOTH        Yes / No        yes

29    SILICA GEL            Yes / No        yes

30    UNIT DIAMENSION mm             170x127x54

31    UNIT WEIGHT  gm / oz.              860g       850g

32    GIFT BOX SIZE mm

33    PIECES PER INNER CARTON  Pieces / Size

       INNER CARTON SIZE

34    PIECES PER SHIPPING CARTON        Pieces

35    SHIPPING CARTON SIZE            Size cm

36    GROSS WEIGHT   Kg. / Pound

37    NET WEIGHT   Kg. / Pound
