3.3X
Product description

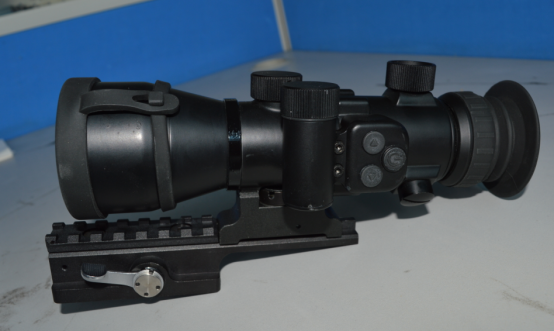

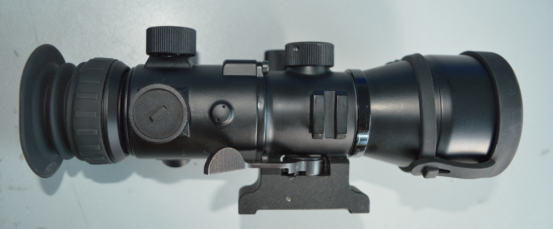

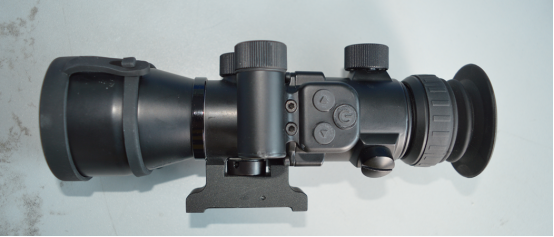

This product uses high performance Super ii image intensifier, which greatly improves the clarity of observation. With automatic anti-glare protection, equipped with independently controlled infrared auxiliary illuminator, suitable for international standard Picotini guide rail, through its own connection mechanism, can be used as a sighting device.
Product characteristics
Universal orbital system with ranging function
Remote observation
Advanced optical system
High resolution
Exquisite and durable material
Built-in infrared assisted lighting
One year warranty, lifetime maintenance
Product specification
the intensifier | Super second generation |
magnification | 3.3 |
Field of view (degree) | 11º |
Visual adjustment range | +2~-4 |
Focus range | 10(m)-∞ |
Exit pupil diameter (mm) | Ф7 |
Pupil distance (mm) | 26 |
Observe the distance | 300 m |
Wind range,MOA | ±15 |
Height adjustment range,MOA | ±15 |
Working temperature | -40℃~+50℃ |
The power supply | A 3V lithium battery |
Adjust range of reticule | 0~15 density, 1 click of 100 m target, 1.43 cm |
Adjust the amount of each file on the dividing board | 0.143 density |
The cathode type | 18mmS-25 |
Cathode sensitivity | ≥550 |
resolution ,lp/mm | 57-64 |
Gain fl/fcd | 25000-35000 |
Sex ratio | 20-22 |
Sensitive value | ≥1250 |
Shelf life, year | 1 |
