Outdoor thermal telescope KRY801X-25,35 KRY802X-25,35

KRY801X-25,35  KRY802X-25,35

Order inquiry
Product Image Product name Product number Order quantity
Outdoor thermal telescope KRY801X-25,35 KRY802X-25,35   KRY801X-25,35 KRY802X-25,35
* Name
*cellphone
E-mail
Company
Remarks

product description:

Product introduction

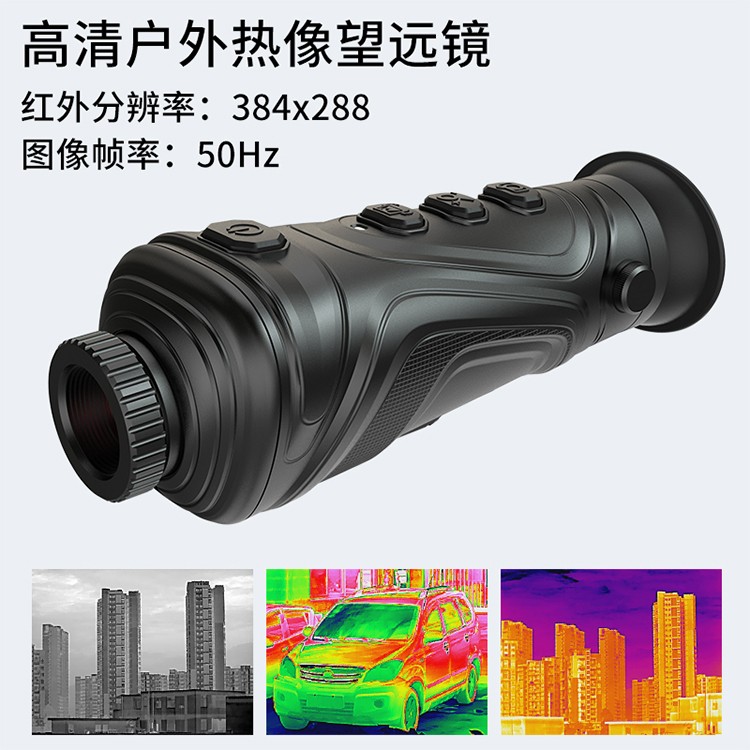

This product is an outdoor thermal imaging telescope with advanced uncooled focal plane infrared detector and high quality optical lens as the core, combined with a convenient and fast operating system, compact shape design, functional expansion spare parts. Long service life, strong and durable, suitable for various environments, for users to create a "clear image, accurate measurement, simple operation, easy to carry 'ideal temperature measuring tool, is the best choice for on-site detection, prevention and maintenance applications.

This product is used in wild animal observation, search and rescue,  night patrol, outdoor sports, personal security, etc. This product has the function of taking photos, and can be connected to the computer by USB to browse the photos taken, which is convenient for many people to observe at the same time, creating possibilities for more applications.


Technical Parameters:

Performance indicators

Model

KRY801X-25,35

KRY802X-25,35

Product weight

440g

541.2g

Product size

186x69x68 mm

187.3x68x68.2mm

Probe type

Uncooled focal plane

Resolution ratio

384x288 infrared focal plane

LCD resolution

720X540

Focus length

19mm;25mm;35mm



Eyepiece

Single eyepiece display (the dioptric   compensation is adjustable)

Field angle

19.5°x14.7°; 14.9°x11.2°; 10.7°x 8°

Digital zoom

2X;4X

Wavelength coverage

8μm-14μm

Frame rate of thermal   images



50Hz

Color   palette

Rainbow/Hot metal/white   heat/black heat

Focusing   mode

Adjustable

Image   storage

BMP

Battery

Built-in rechargeable batteries

USB

Micro USB

Working   time

≥6 hours

Work temperature

0℃- 45℃

Storage temperature

-20℃- 60℃
