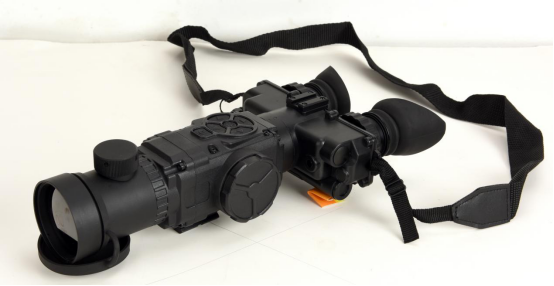

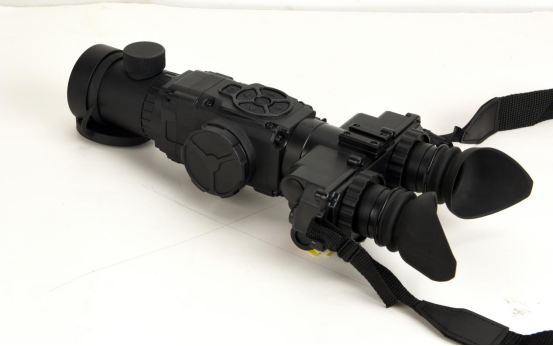

KRG181R-35-6 Thermal imaging, infrared thermal imager

KRG181R-35-6

Order inquiry
Product Image Product name Product number Order quantity
KRG181R-35-6 Thermal imaging, infrared thermal imager   KRG181R-35-6
* Name
*cellphone
E-mail
Company
Remarks

product description:

Brief introduction:

Thermal imager UFPA,640x480, OLED monocular screen;It can produce clear images in all-black, rain, snow, smoke, fog and other situations, especially suitable for all-black, border patrol, jungle search and rescue and other fields.  Thermal imaging can work continuously during the day and night, and has the ability to penetrate fog, smoke, dust and other particles, and can complete search,  and other tasks at night.

V 640 x480
V 50Hz real-time imaging, fast moving without dragging
V advanced tailless design and unique digital enhancement algorithm
V professional telephoto germanium lens, 2 x, 4 x digital zoom
V white-hotack-hot/brown/iron-red/green color options
V video output interface
V battery replacement is convenient
V extremely low power consumption, can work continuously for a long time
V easy to operate button and digital menu
V level 6 brightness control, level 4 image enhancement (target can be found in extremely harsh environment)
V system has high reliability, anti-fall and anti-seismic ability
Product features:
Built-in cross divider, adjustable eye distance, 3-6 times digital zoom, external tripod, handle and video output, 6 colors: black hot/white hot/green/fluorescent/brown/iron red




Technical Parameters:

modelKRG181R-35-6
Image sensorPolysilicon uncooled focal plane array
The lens35mm hard coated germanium lens germanium metal manual focusing lens, coated with hard carbon and anti-reflection coating
Optical magnification1.5X
Digital zoom3-6X
diopter-4~+2
Wavelength range7~14um
An exit pupil distance52mm
An exit pupil diameter6mm
Detection of yuan640*480
OLEDOLED,800X600
Thermal sensitivity≦50mk(@25℃)
Detection range>1200m,people(1.8m*0.5m)>1300 m things(2.3 m *2.3 m)
Identify the distance>300m,people(1.8m*0.5m)>350 m things(2.3 m *2.3 m)
The battery specificationFour 3V rechargeable lithium batteries
Work hours8hours
Frame frequency50HZ
Non-uniform correctionAdopt no baffle technology
The image of polarityBlack heat/white heat/green/fluorescent color/brown/iron red
Operating temperature-40℃~+50℃
Storage temperature-45℃~+85℃
colorblack
The quality assurance3years
Protection gradeIP65
Video outputyes
The power converteryes
