KHSY170P-3x32 The latest Night Vision, Wholesale Night Vision, Produced Digital

Order inquiry
Product Image Product name Product number Order quantity
KHSY170P-3x32 The latest Night Vision, Wholesale Night Vision, Produced Digital   KHSY170P-3x32
* Name

product description:

1. Operational and training purposes of reconnaissance and command of military units;
2. Patrol records of border armed police, customs anti-smuggling inspection and maritime patrol;
3. Anti-terrorism and stabilization, secret investigation, inspection and evidence collection of law enforcement by departments of public procuratorial law and city administration;
4. Supervisors of nature reserves, forestry, wildlife conservation, scientific research institutes, forest farms, wetlands, forest parks, etc.Survey wildlife, anti-poaching;
5. Field observation and rescue, mountain cave tourism and adventure enthusiasts outdoor tourism climbing telescope camping Photographic monitoring;
6. News reporters observe and take photos remotely, and investigate company/private detective evidence collection records;
7. Traffic command and highway management departments observe and take long-distance license photographs;
8. Hazardous industries such as fire fighting/banking/electric power/railway water conservancy/steel works/riot prevention/high-level operation Long-distance observation and photography;
9. Forestry Management, Geological Exploration, Petroleum Production Units, Airport Management, Large-scale Assemblies Management Unit/Railway and Port Distance;
10. Environmental Protection, Safety Supervision or Long-distance Photo Supervision for Hunting and Animal Observation Enthusiasts measure
Product characteristics:
1. Clear imaging, day and night, color images in the daytime, black and white images in the night;
2. The longest observation distance at night is more than 200 meters.
3. Multifunctional, which can realize the functions of camera, video recording, storage and video output.

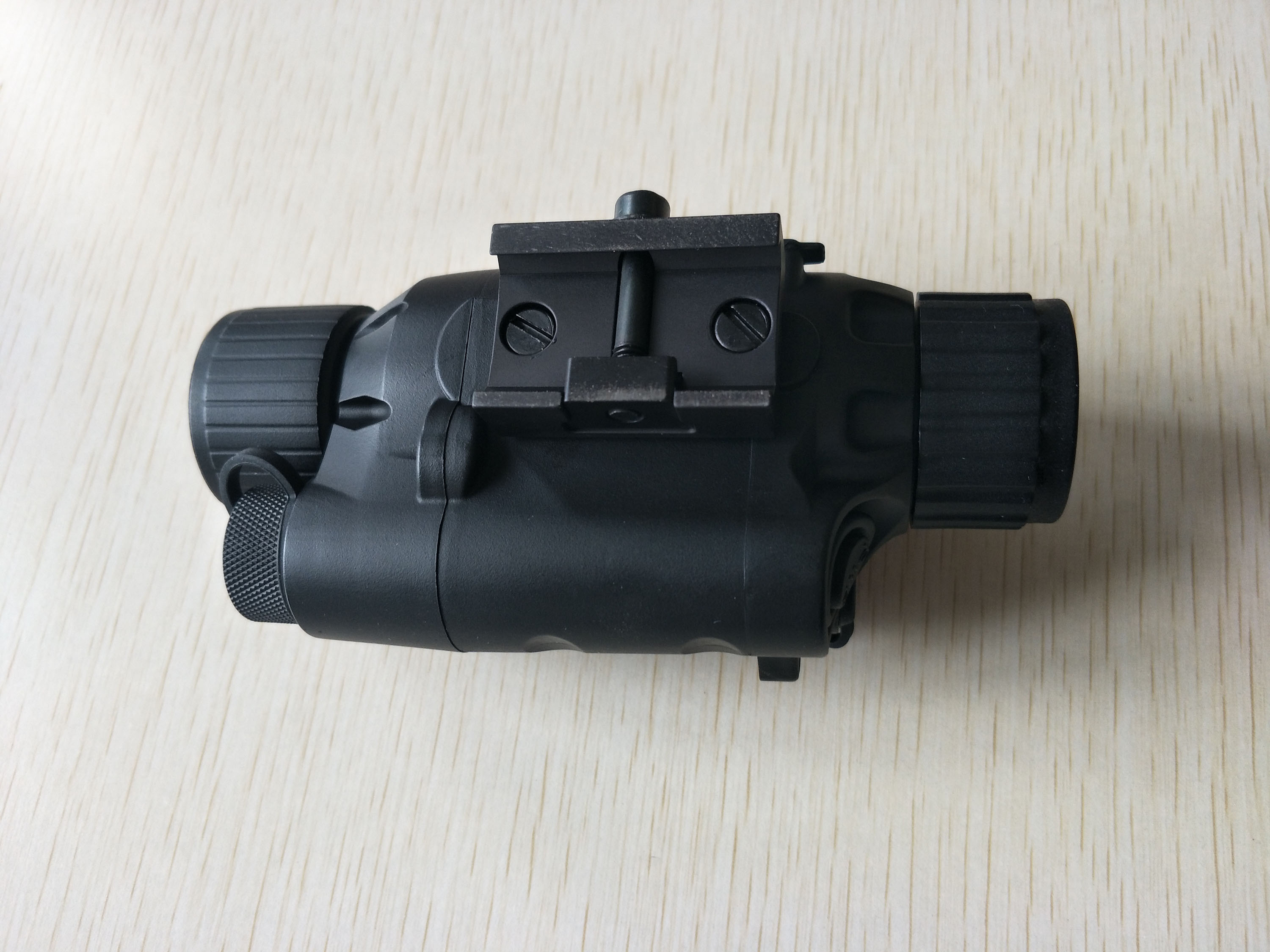

4. Equipped with guide rail, multi-purpose, can be handheld, headband (need to be equipped with special bracket) and gun use;
5. Small size, light weight and easy to carry.
6. Beautiful appearance.

Technical Parameters:

Category project The parameter value
Optical performance Magnification 3X
Diameter of the objective Φ32mm
Field of view 8.35°x7.93°
Exit pupil diameter 6mm
Exit pupil distance 14mm
Range of visibility adjustment ±5 SD
Resolution ≦5.6″
Minimum observation distance 250mm
Observe the distance at night ≧200m
The sensor CMOS 1/2″CMOS
Effective pixels 768 X 582
Frame rate 60 frames per second
Display LCOS 0.24"LCOS
Resolution 320(H)*240(V)
Dunction Video, video, video output, memory Yes, the maximum support is 32gb TF card
lighting Lighting devices IR LED
Center wavelength 940nm(or 850nm)
The power supply Working voltage DC 3.7V
Built-in power supply One 16650 lithium battery
The battery works continuously 2.0/3.0 h(IR ON/IR OFF)

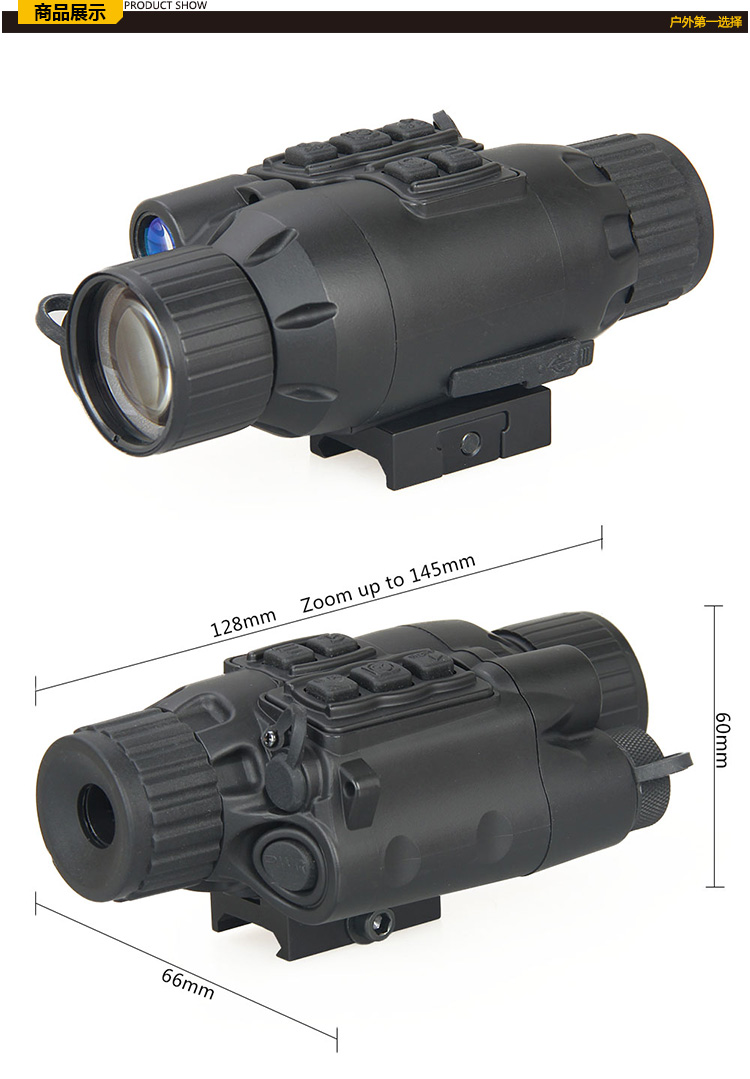

Product size Length * width * height 12.8 X 6.6 X 6.0CM
product weight G 220g(Do not contain batteries),250g(Contain the battery)
Packing size Length * width * height 17.5 X 10.5 X 9.0CM
Other switch 1.The power switch;2.Display brightness adjustment;3.Infrared lamp brightness adjustment
